Quadrocopters Microdrone MD4-1000, and self modified copters
  • up to 70 minutes if air time
  • 1000 m flight radius (even more with Way-points)
  • operate in -40°C – 50°C
  • 1200 g payload – professional camera, various sensors, as listed bellow
  • wind tolerance 10 m/s for steady pictures
  • autonomous software for routine control

Used for small and mid size objects.

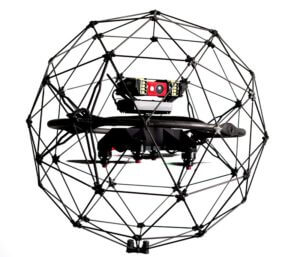

Quadrocopter Flyability Elios
  • Designed for confined spaces or other inside flights
  • size of drone 400 mm
  • Carbon fiber structure collision-tolerant up to 15 km/h
  • flight time up to 15 min
PAYLOADS

Sony Alpha 7R
  • Sensor Resolution 36.4 Megapixel
  • Optical Sensor Size Full Frame (24 x 35.9 mm)
  • Image Recording Format JPEG, RAW, RAW + JPEG
  • Max Video Resolution 1920 x 1080
  • Light Sensitivity ISO 100-25600, ISO 50, ISO auto (100-6400)
  • Protection dust-resistant, splash-proof

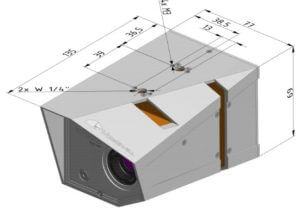

WorksWell Wiris 2nd

  • Resolution 640 x 512 pixels
  • Temperature ranges -40°C to +550°C
  • Temperature sensitivity 0.05°C
  • Accuracy ±2% or ±2°C
  • Spectral range 7.5 –13.5μm
  • Calibration – Yes,calibration certificate included
  • Detector type Uncooled VOx microbolometer
  • Available lenses 18°, 32°, 45°, 69°
  • Digital zoom 1 –14x continuous
  • Max/Min/Center temp.Automatic hot spot and cold spot detection, center point measurement
