We are able to provide both aerial and underwater inspections. We use self-modified drones and planes controlled by pilots with 5 year experience. Various payload can be mounted, such as hight quality camera, spectrometer, gas detector or thermo camera. We combine these data to detect facility defects on highly unavailable places, such as oil wells. Underwater vehicles (ROVs) are able to operate in 150 m or 2000 m depth. We use them to defect detection, ocean platform cleaning, cable maintenance, deepwater salvage or construction support.

AERIAL VEHICLES

microdrone 1000 and 200Quadrocopters Microdrone MD4-1000 and MD4-200, self modified

  • up to 70 minutes if air time
  • 1000 m flight radius (even more with Waypoints)
  • operate in -40°C – 50°C
  • 1200 g payload – professional camera, various sensors, as listed bellow
  • wind tolerabce 6 m/s for steady pictures
  • autonomous software for rutine controlls

Used for oil tank inspections, powerline inspections,… More on services page.

Aircraft SongBird, used for, larger survey area, theft identification, leakage detection

  • fully operational with wind of up to 17 m/s
  • Flight time 50 min = 75 kmQuadrocopter Altura Zenith
    • Flight time up to 40 min
    • IP55
    • payload 3 kg
    • wind speed up to 16 m/s
    • autonomous flight









    Quadrocopter Flyability Elios

    • inside flight
    • size of drone 400 mm
    • Carbon fiber structure collision-tolerant up to 15 km/h
    • flight time up to 10 min

PAYLOADS

EXPERIENCED PILOTS

pilots

642
flight hours
Czech Republic
Russia
Germany
Slovakia


czech-aviation-office

We have the
Certificate
from
Civil Aviation Authority

UNDERWATER EQUIPMENT

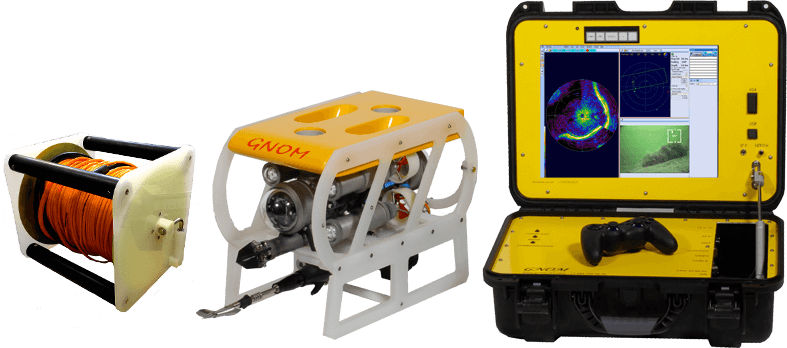

ponora mala 1Small ROV

  • Depth rating: 150 m
  • ROV Maximum speed: 3 kts
  • Maximum current: 2 kts
  • 2 high resolution (600 lines/0,15 lux) color cameras

triton1Triton XL-21

  • Depth rating: 2000 m
  • 5-function manipulator
  • Maximum current: 2 kts
  • 4 cameras
  • compatible with DEEPWATER® products, such as cathodic
  • protection probe, FlexiClean

Applications

  • platform cleaning and inspection
  • remote tool deployment
  • drill support
  • subsea cable maintenance
  • construction support
  • deepwater Salvage

SUPPORTING EQUIPMENT

buggyBuggys used for line inspections

  • Even in line flying we keep an eye on drone
  • Drone fly in autonomous mode and pilot is ready to overtake the drone in any abnormal situation
